Transformer core stacking table

We supply 2 types of core stacking table (from 60tons to 300tons). Suitable for 3 limbs and 5 limbs transformer core.

Transformer core stacking table, Core building and tilting table for EHV power transformers

The Core Building/Stacking Table is designed for Stack Laminations, assemble the Core and to lift the Core vertically.

• The load capacity is up to 300 t, depending on costumers demands

• The stacking table is equipped with mechanized adjustments of the limbs to reduce setting time of adjusting limb center to center distance and window space of the Core.

• Manual jacks are provided on the limbs for adjusting the level of the core.

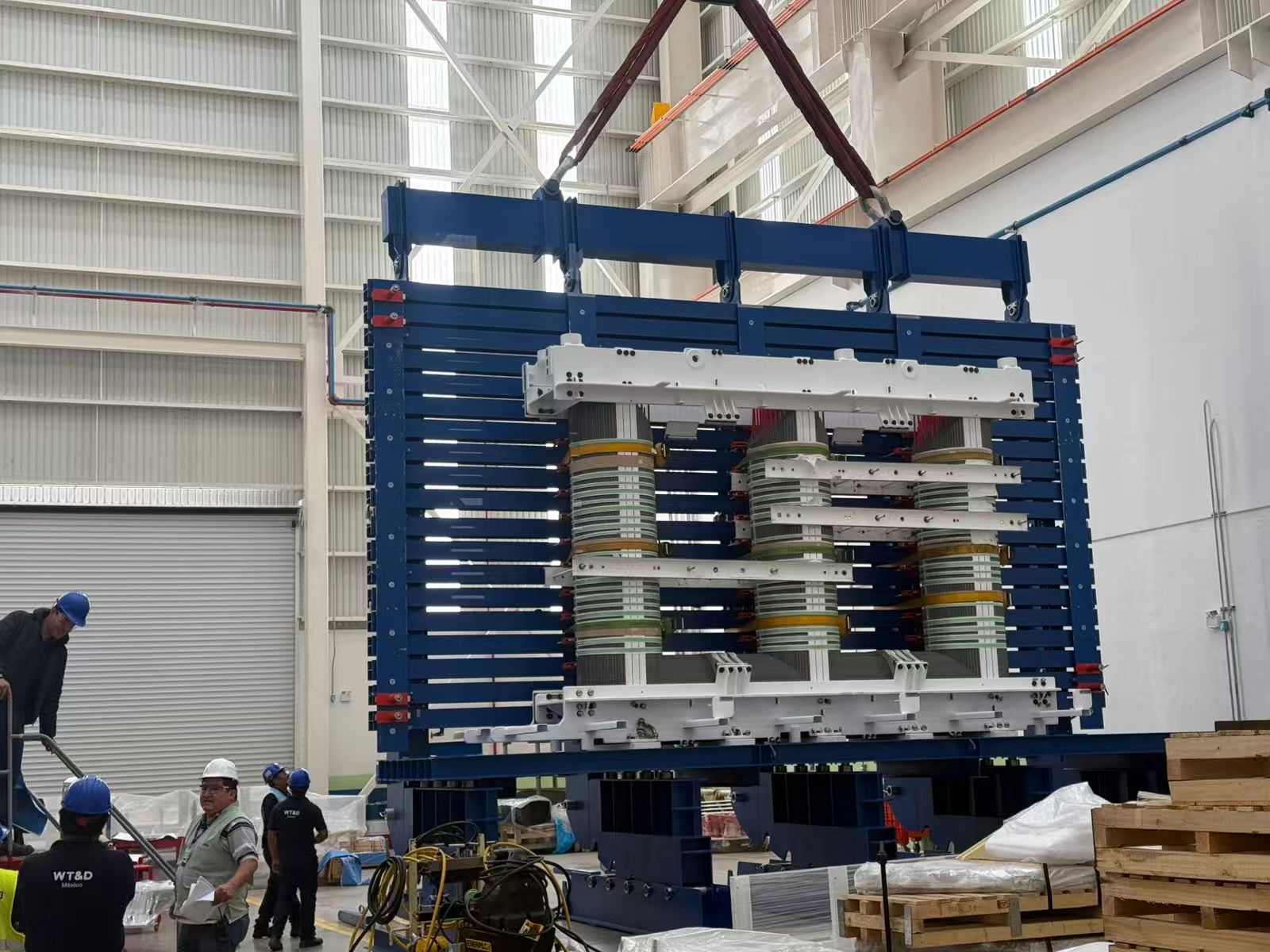

• The Core tilting from horizontal to vertical position is by Overhead Crane. It is on floor without foundation.

1.Hydraulic core stacking table;

2.Crane driven core staking table;

"Mesa de apilamiento de núcleos de transformadores, mesa de construcción e inclinación de núcleos para transformadores de potencia EHV."

"طاولة ترصيص قلب المحول، وطاولة بناء وإمالة القلب لمحولات الطاقة فائقة الجهد (EHV)."

"Table d'empilage des noyaux de transformateurs, table de construction et de basculement des noyaux pour transformateurs de puissance THT."

"EHV पावर ट्रांसफॉर्मर के लिए ट्रांसफॉर्मर कोर स्टैकिंग टेबल, कोर बिल्डिंग और टिल्टिंग टेबल।"

"Стол для сборки сердечников трансформаторов, стол для сборки и наклона сердечников для трансформаторов сверхвысокого напряжения (СВН)."

"Bàn xếp chồng lõi biến áp, bàn dựng và nghiêng lõi cho máy biến áp siêu cao thế (EHV)."
