transformer coil press machine
    transformer  coil press machine

Product Description:

 Transformer Coil) Hydraulic Pressing Machine

The Transformer coils are designed for a specific Winding Length. Length of the winding increases due to the gap in each disc. In order to maintain the length within the design parameter, the coil shall be pressed by applying the designed or specified pressure.

The machine is specially designed for transformer coil (big, medium and small) pressing. It is an essential machine for transformer production, particularly for power transformer above 110KV.

Features:

1.Window height is adjusted by motor. Digitally display pressure and coil height.
2.One big hydraulic cylinder up Stroking; advanced and stable hydraulic system.
3.With motorized trolley, it is very easy for coil transport.

4.With PLC and Touch Screen.




Main structure of hydraulic coil press machine:
1.Machine mechanical body;
2.Pressing platen;
3.Motorized trolley(for coil transport);
4.Hydraulic cylinder and hydraulic system;
5.Force measuring device;
6.Lubrication system;
7.Electrical control system (with SIEMENS PLC and HMI)



Item

Unit

Range

Nominal force

kN

630-3000

Max. oil pressure

MPa

6.3-10

Coil height can be reduced

mm

0-800

Speed of pressing

mm/s

0.5-10

Range of window height  ( allowed coil height)

mm

800-4200

Platen Size

mm

1500x 1500 to 3200 x 3200

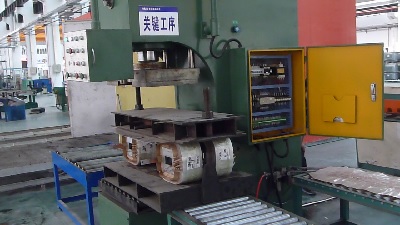

  There is also Coil Press machine for small coils

No.

Name

Unit

Data

1

Rated force

KN

1000

2

Max. press force

Mpa

26

3

Deepth of throat

Mm

385

4

Height of throat

Mm

800

5

Pressing stroke

Mm

500

6

Pressing speed

mm/s

25
