Transformer Insulation Radial Spacer Milling Machine

Product Description:

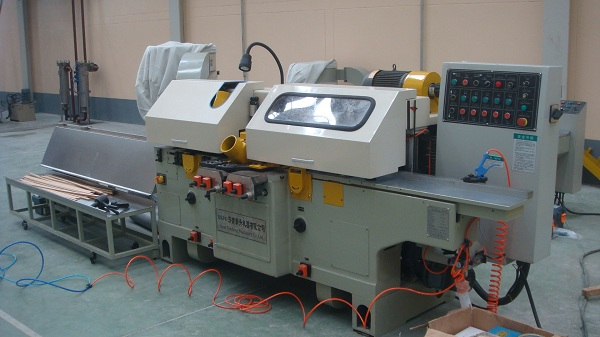

Transformer Insulation Radial Spacer Milling Machine

1. Application

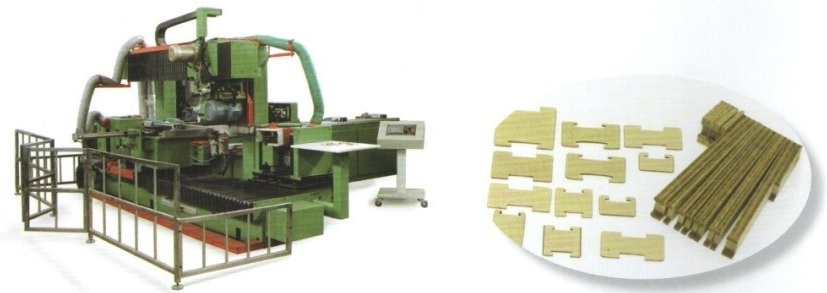

This CNC machines is used for processing the straight, dove-tail or swallow-tail slots automatically at the two ends of a block of the high-voltage transformers. The surface of these ends can be smooth without any micro particles after processing and the problem of thickness for the block is solved as well. Machined winding spacers with Dovetail slot or T slot; Punched winding spacers with Dovetail slot or T slot

2. Paperboard and finished block size:
2.1. Raw material size:
    Length:           1000～3000mm
    Width (Height):      30～60mm
    Thickness:           1.5 ～10mm
The width of feeding the blanks superimposed  for one time:150～300mm
2.2. Finished blocks size
   Length:               30～350mm
   Width:              30～60mm
   Thickness:         1.5～10mm

3. The main technical parameters:

1. The RPM for the circular arc cutter:         4500r/min
2. The RPM for the slot cutter:                  7000r/min
3. The RPM for the saw blade:                  4000r/min
4: The capacities of the compressed air and air necessary:   0.5MPa   1000Nℓ/min C
5: The capacity of wind for deducting required:                    90CBM/min
6: The external dimension L x W x H:                                 6000mm×5000mm×1800mm
