Chinese Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers
    Chinese Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers

Product Description:

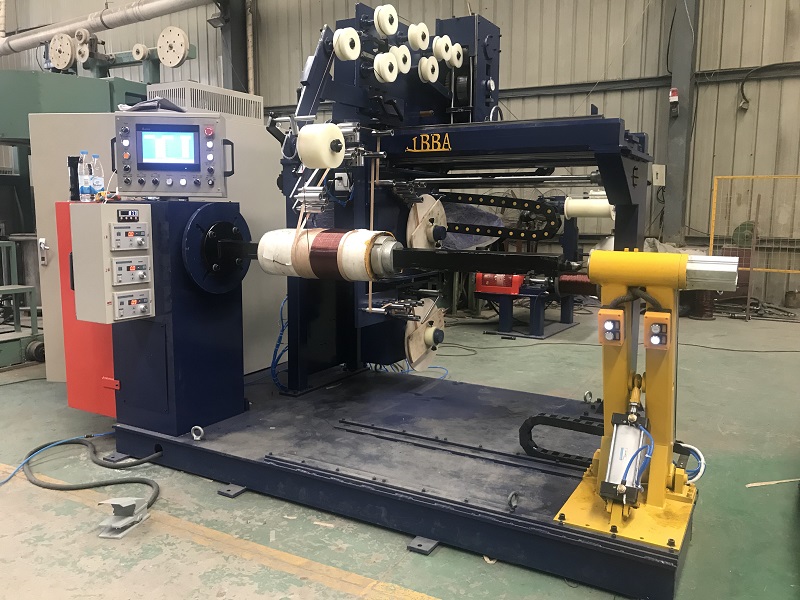

Automatic Wire Winding Machine
1.General:

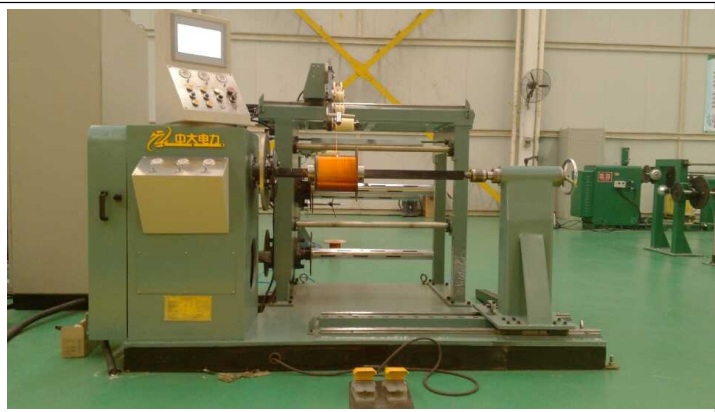

H.V.Coil Winding Machine for Distribution Transformers, China

Chinese Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers

 The machine can perform windings using the strip graded insulation giving extreme flexibility of use which, together with the software, enables different distribution modes for the insulating material.

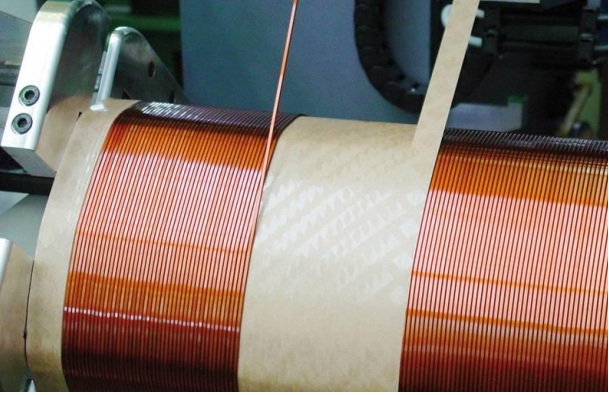

Gradual Strip insulation

Automatic calculation of stops for taps, cooling ducts etc. ;

Flexible software


It consists of :
Winding Machine;
Auto-wire-laying-device;
Layer-insulation-feeder;
Round/flat-wire-tension-adjusting-device;
Pneumatic system;
PLC control and Servo motor system;
HMI touch screen.

2.Main technical data

No.
Parameters
AWW-800
AWW-1100
1
Center height
850-950mm
850-950mm
2
Winding shaft center distance
200-1000 mm
200-1300 mm
3
Working torque
≤500 N·M
≤1000 N·M
4
Rotation speed
0-240r/min
5
Motor power
5.5KW
6
Speed adjust
Stepless, frequency conversion speed adjustment
7
Workpiece diameter
OD≤800mm; ID≥80mm
8
Max. workpiece weight
1000kg
9
Max. number of laps counting
9999.9
10
Enamalled wire specification and number
Φ0.3mm—Φ5mm; 1 piece

11
Flat wire and number
Max. 20×5mm; 2 pieces
12
Number of layer insulation shaft
1,3
13
Number of wire-payoff-rack
Flat wire rack:2pcs
Emamalled wire rack: 1pc
14
Min. gap between wires
0.01mm
15
Mode of counting
5-digital display, total no. of laps can be preset.
Within the total no. of laps, it can be divided into several sections of sub-preset.
Can be reverse counting. Can keep record in case of power failure.

16
Power supply
380V/50Hz; 5.5KW

3.  Function and Features
3.1. Using mechanical gear speed adjusting system, with high efficiency and low noise.
3.2. There is pneumatic brake for main winding shaft, sensitive and reliable
3.3. With Inverter to adjust winding speed to best status.
3.4. Speed adjust range is wide, accurate and stable.
3.5. With auto wire-laying function.
3.6. With servo-motor, HMI and PLC control system.
Use ball-screw-drive and linear-guide-rail to ensure accurate wire laying.
3.7. Auto-wire-laying and winding are synchronous.
3.8. Tension is adjustble, with tension buffering function.
3.9. Before winding, adjust auto-wire-laying, ensure winding is compact.
3.10. With control box on winding machine, easy for operation.
3.11. With rectangular shaft(50×50×Lmm).
3.12. Connection between Faceplate and Rectangular-shaft can be specially made.

 Transformer HV coil winding machine, made in China;

HV coil winding machine, made in China;
High voltage coil winding machine, China
transformer high voltage coil winding machine, from China;
distribution transformer high voltage coil winding machine, made in China.
HV coil winding machine manufacturer from China;

H.V.Coil Winding Machine for Distribution Transformers, China;

China H.V.Coil Winding Machine for Distribution Transformers;

Chinese H.V.Coil Winding Machine for Distribution Transformers

Chinese Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers;

China Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers

Chinese Wire winding machine for high voltage coils of distribution transformers

China Wire winding machine for high voltage coils of distribution transformers

 Chinese Wire winding machine (with strip gradual insulation) for high voltage coils of distribution transformers

Transformer Coil winding machine (With Strip Insulation paper), from China;

Chinese winding machine for transformer high voltage coils with strip insulation.

HV coil winding machine with strip insulation, made in China.

With flattening unit for round wire

With Strip insulation decoiler

With dancer roller to control the motor for constant strip tension

You may contact us at:

Wechat/whatapp: +8613923325364;

Email: ymmachinery@vip.sina.com, fszyym@gmail.com
