Air core reactor vertical winding machine

Product Description:

Vertical Winding Machine for HARMONIC FILTER REACTORS AND SHUNT REACTORS

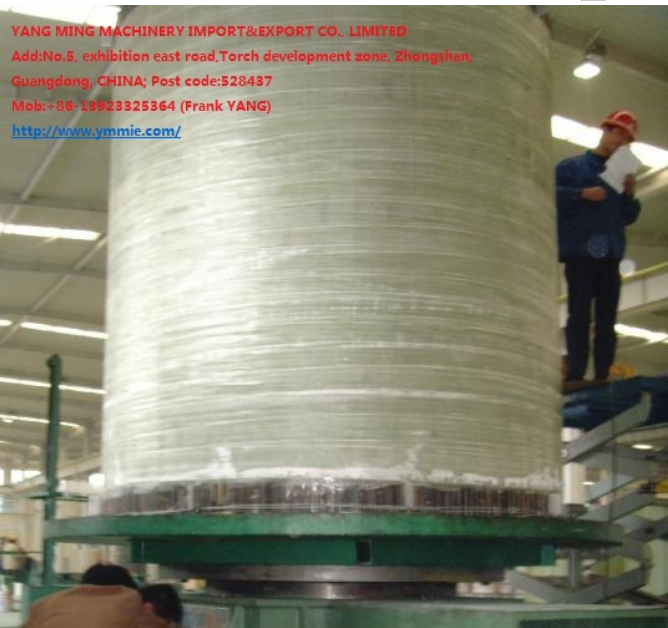

The vertical winding machine is intended to be used for winding air core reactors made of insulated aluminum wires.

It is especially designed for air core reactor coil winding.

1. Main technical data

Main winding body
Maximum loading	10000Kg
Faceplate diameter	Φ2400mm
Winding power	15Kw
Faceplate speed	0~25r/min（VFD, stepless adjusting）
Adhesive plate	Φ4200mm, one piece
Wire size	Round wire： Φ1.6mm~Φ5.5mm
	Rectangular wire： 4.4mm~25mm
	Flat wire： 2.5mm~12.5mm
Number of wire	1~6piece
Traversing accuracy	1000mm±10mm
Suitable for max. coil diameter	Φ4000mm
Suitable for max. coil height	4000mm
Wire&Glass wire effective travel	4200mm
Wire Traversing Device
Lifting travel	4200mm
Lifting speed	0~50r/min
Wire arm telescopic spacing	800mm
Glass wire pay-off device
max. number wire reel	6
tension	30nm（manual adjusting）
Lifting wire pay-off device (Al, or Cu wire)
Max. number wire reel	6
Max. loading	1000Kg
Travel height	same with winding coil
